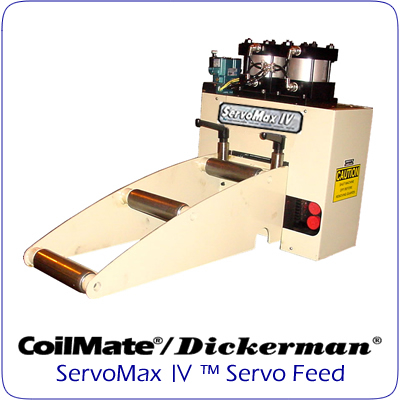

ServoMax® IV Servo Roll Feed from Dickerman®

The ServoMax IV Servo Roll Feed provides dependable performance for demanding coil processing applications. Complete with features listed above as well as, Matte Chrome Traction Rolls, Pneumatic Pilot Release, Cluster Gear Upper Roll Drive and provisions for a Mechanical Stroke Limiter.

The ServoMax® SE Servo Roll Feed provides dependable performance for demanding coil processing applications.

Search IconClick for larger image



ServoMax® IV Servo Roll Feed - Specifications

Model(s): SMXIV6, SMXIV12, SMXIV18, SMXIV24, SMXIV30

Width: SMXIV6         6"   (152.400mm)
SMXIV12       12" (304.800mm)
SMXIV18       18" (457.200mm)
SMXIV24       24" (609.600mm)
SMXIV30       30" (762.000mm)

Thickness: SMXIV6         .187" (4.750mm)
SMXIV12       .156" (3.962mm)
SMXIV18       .125" (3.175mm)
SMXIV24       .093" (2.362mm)
SMXIV30       .078" (1.981mm)

Feed Length: SMXIV6          999.999" (25.39mm)
SMXIV12        999.999" (25.39mm)
SMXIV18        999.999" (25.39mm)
SMXIV24        999.999" (25.39mm)
SMXIV30        999.999" (25.39mm)
