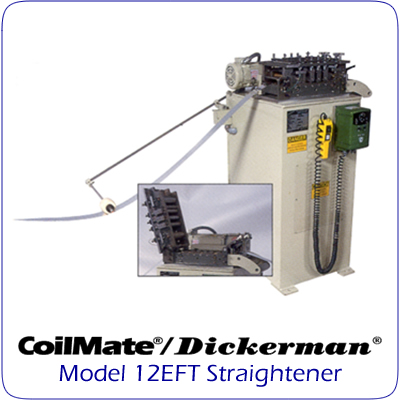

Model 12EFT Straightener from CoilMate®/Dickerman®
The 12EFT builds on the features of the 6" model with increased width and versatility. The Economy Flip-Top (EFT) Model(s) Coil Straighteners feature: Flip-Top Design, Entry and Exit powered pinch rolls, individual roll adjustment, 75 FPM with loop arm control, remote jog pendant, 110V Single Phase.
Model 12EFT Straightener - Specifications
| Max. Stock Width : | 12" (304.800mm) |
| Capacity Mild Steel (min/max): | .010/.078 (.254mm / 1.98mm) |
| Straightening Roll Dia.: | 1.125" (28.600mm) |
| Center Distances : | 1.75" (44.4mm) |
| Pinch Roll Dia.: | 2" (50.800mm) |
| Number of Rolls: | 7 straightener rolls, 4 pinch rolls |
